《VCB-4F》
MODEL：VCB-4F
The new generation Fully Automatic Veneer Core Builder from FORRICH is designed for composing veneer thickness from 1.5mm to 4.0mm. The machine features high feed speed from 35-40 meters per minute. The entire motion sequences from material infeed to product stacking are fully automatic operated.
The FORRICH VCB-4F exhibits outstanding cutting stability and accuracy. In addition, the machine reduces material loss percentage to a minimum. The machine is equipped with a PLC control combines with convenience of operation.

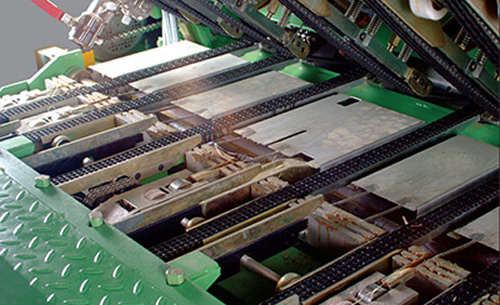

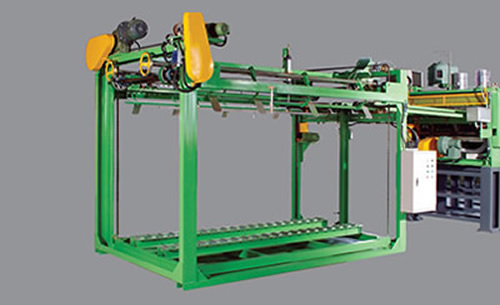

The automatic stacker is ruggedly constructed for outstanding loading resistance without deformation. Core veneers are delivered by a combination of belt and rollers feed system. Powered elevation is driven by a motor.
The core veneer thickness inspection roller is precision machined, and hard chrome plated for superior wear resistance. This combines with high precision thickness inspection device for accurate thickness inspection. Applicable minimum length of core veneer is 80mm.

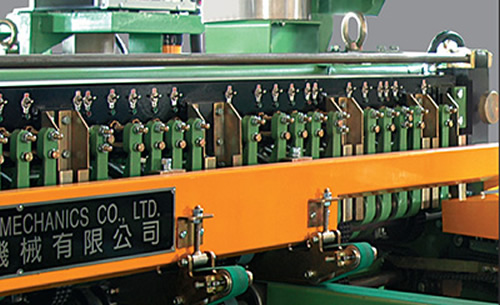

The specially designed synchronized drives system at top and bottom exhibits highly accurate composing performance for single plate. In addition, it also avoids overlapping of single plates.

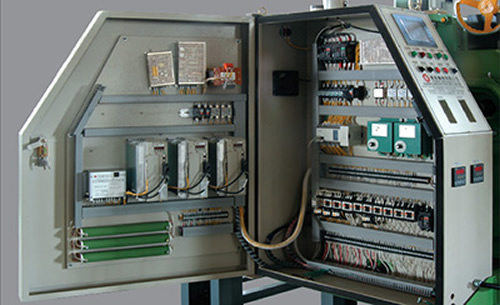

The electric control system consists of high quality electronic components, featuring maximum stability of control, long service life and easy maintenance.

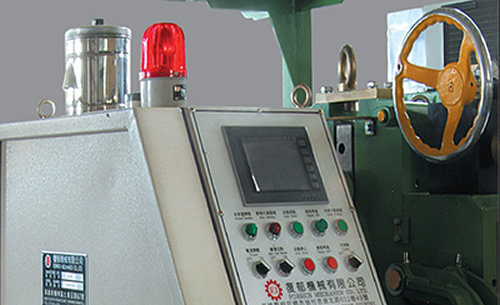

The machine motions are controlled by a high performance PLC combined with touch-sensing screen provide user-friendly operation for operator.
| MODEL | VCB-4F | |
|---|---|---|
| Length of knife | 1350mm | |
| Working veneer width | 968mm to 1270mm (3ft. to 4ft.) | |
| Veneer thickness range | 1.5mm to 4.0mm | |
| Feed speed | 40M/min.(Max.) | |
| Power | Feeding | 3.7kw |
| Glue applicator | 0.4kw | |
| Full-size clipper | 1.5kw | |
| Blower for cooling | 0.75kw | |
| Cooler unit | 460w(AC200V) | |
| Pump for cooler water | 150w(AC200V) | |
| Heater fir hot melt glue | 7.25w(AC200V) | |
| Table lift for stacker | 2.2kw | |
| Stacker conveyor | 0.4kwX2sets | |
| Blower for stacker | 0.4kw | |

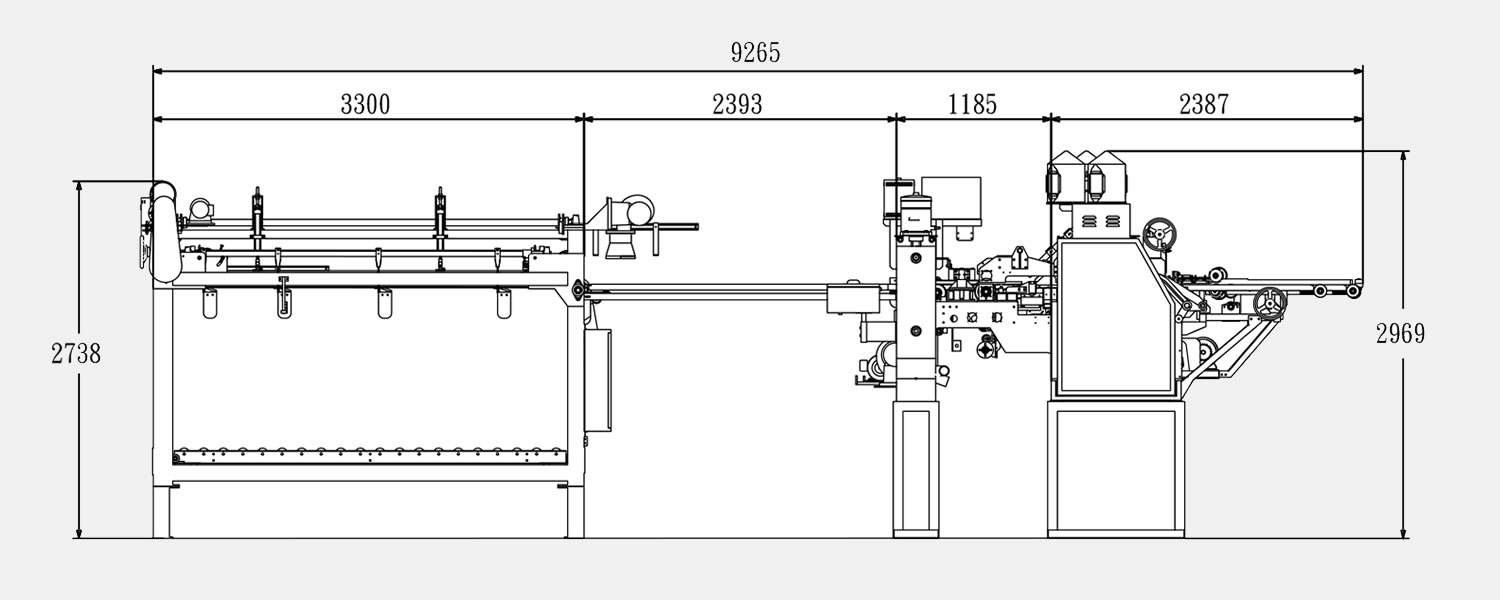

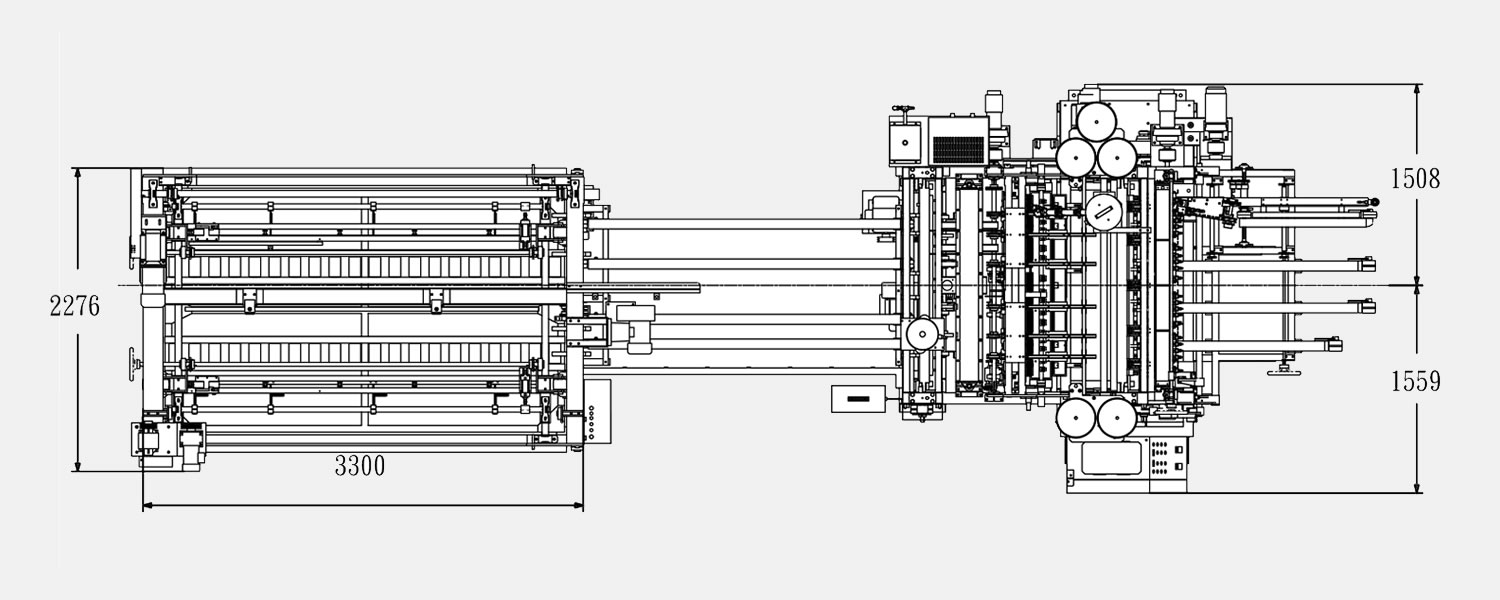

| Area occupied | 3.2M(W)X12M(L) | |
| Machine weight | N.W.7,500KGS(approx.) | |
| Measurement | 50m2(approx..) | |
Optional Equipment |
||
| Air comperssor | Motor | 3.7KW |
| Air pressure | 6kg/cm2 | |
| Air flow | 60L/min | |
