《FS48-B3R》

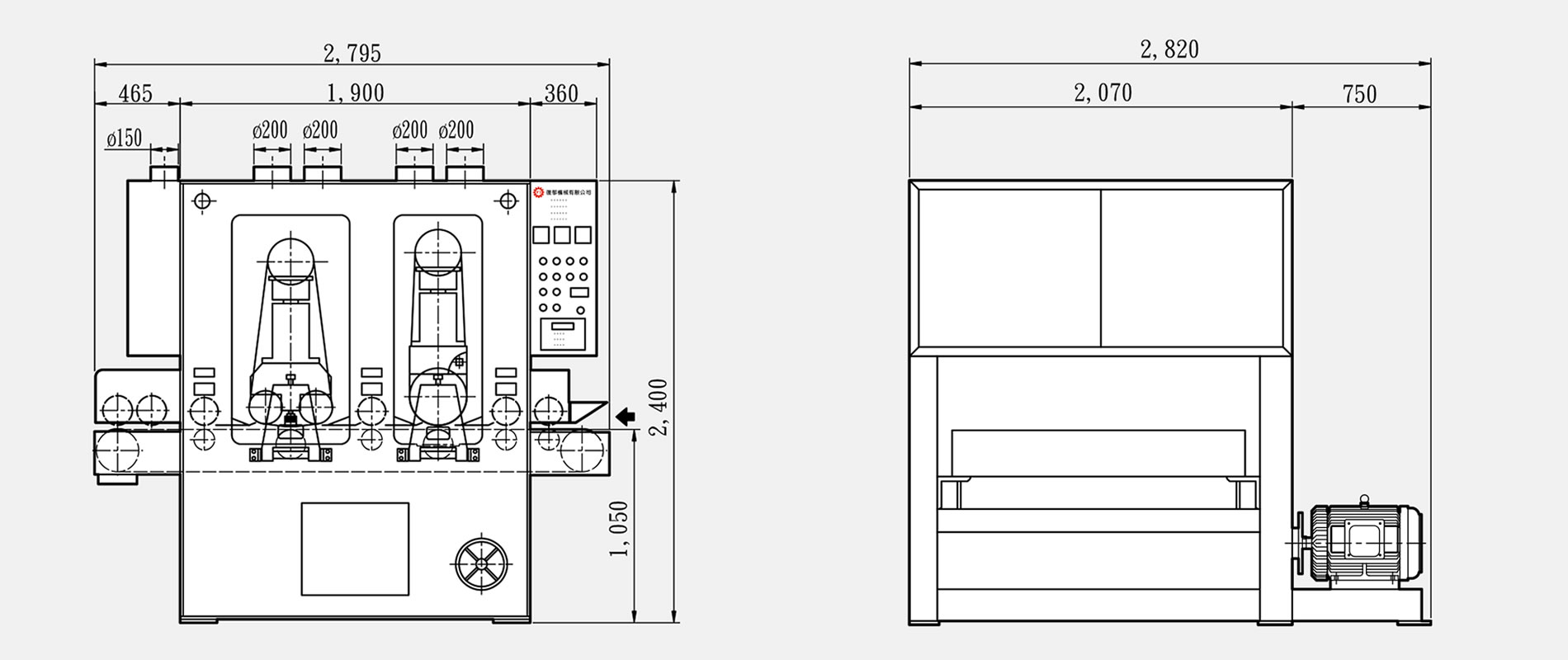

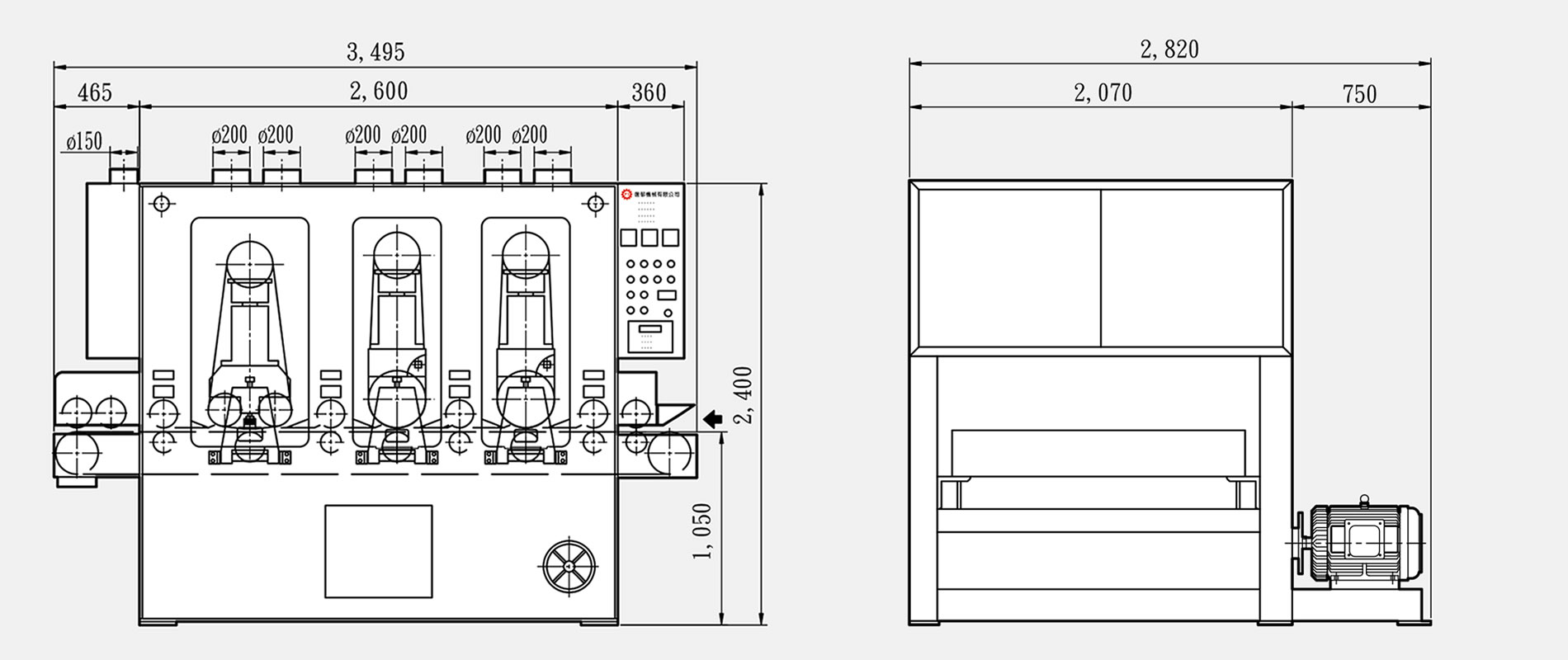

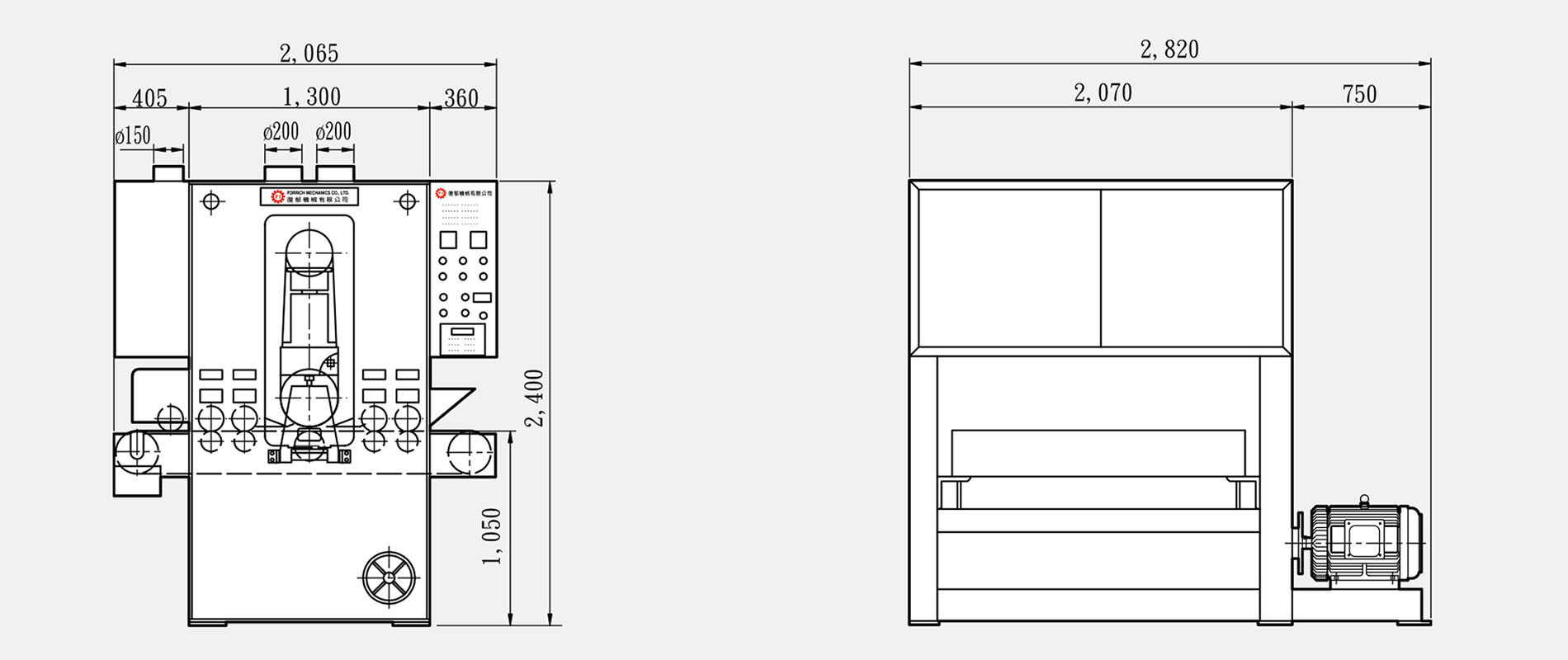

MODEL：FS48-B3R / FS48-B2R / FS48-B1R
| MODEL | FS48-B3R | FS48-B2R | FS48-B1R |
|---|---|---|---|
| MAX. Working width | 1270mm | 1270mm | 1270mm |
| MAX. Working height | 125mm | 125mm | 125mm |
| Feed rate, variable | 30~90MPM | 30~90MPM | 30~90MPM |
| Abrasive belt | 1310X2615mm | 1310X2615mm | 1310X2615mm |
| Motor of 1st head | 75HP | 75HP | 75HP |
| Motor of 2nd head | 60HP | 50HP | - |
| Motor of 3rd head | 50HP | - | - |
| Iron main driving roller | Ø310X1345(L)mmX1PC | Ø310X1345(L)mmX1PC | Ø310X1345(L)mmX1PC |
| Rubber main driving roller | Ø310X1345(L)mmX1PC | - | - |
| Iron main driving roller | Ø185X1345(L)mmX2PCS | Ø185X1345(L)mmX2PCS | - |
| Bottom roller | Ø111X1400(L)mmX5PCS | Ø111X1400(L)mmX4PCS | Ø111X1400(L)mmX4PCS |
| Bottom roller | Ø165X1350(L)mmX3PCS | Ø165X1345(L)mmX2PCS | Ø165X1345(L)mmX1PC |
| Press roller | Ø165X1345(L)mmX6PCS | Ø165X1345(L)mmX5PCS | Ø165X1345(L)mmX4PCS |
| Platen | 75(W)X1400(L)mmX1PC | 75(W)X1400(L)mmX1PC | - |
| Strained roller | Ø265X1345(L)mmX3PCS | Ø265X1345(L)mmX2PCS | Ø265X1345(L)mmX1PC |
| Belt feeding roller | Ø265X1400(L)mmX2PCS | Ø265X1400(L)mmX2PCS | Ø229X1400(L)mmX2PCS |
| Belt | 7400(L)X1320(W)mmX1PC | 5750(L)X1320(W)mmX1PC | 4300(L)X1320(W)mmX1PC |
| Feeding | 10HP | 10HP | 10HP |
| Lifting | 1HP | 1HP | 1HP |
| Panel brush | 1HP | 1HP | 1HP |
| Floor require | 3670X2800mm | 2820X2800mm | 2345X2800mm |
| Net weight | 12000KGS | 8000KGS | 4500KGS |
| Packing dimensions | 3970X3060X2970mm | 3848X3030X2835mm | 3365X2410X2835mm |
