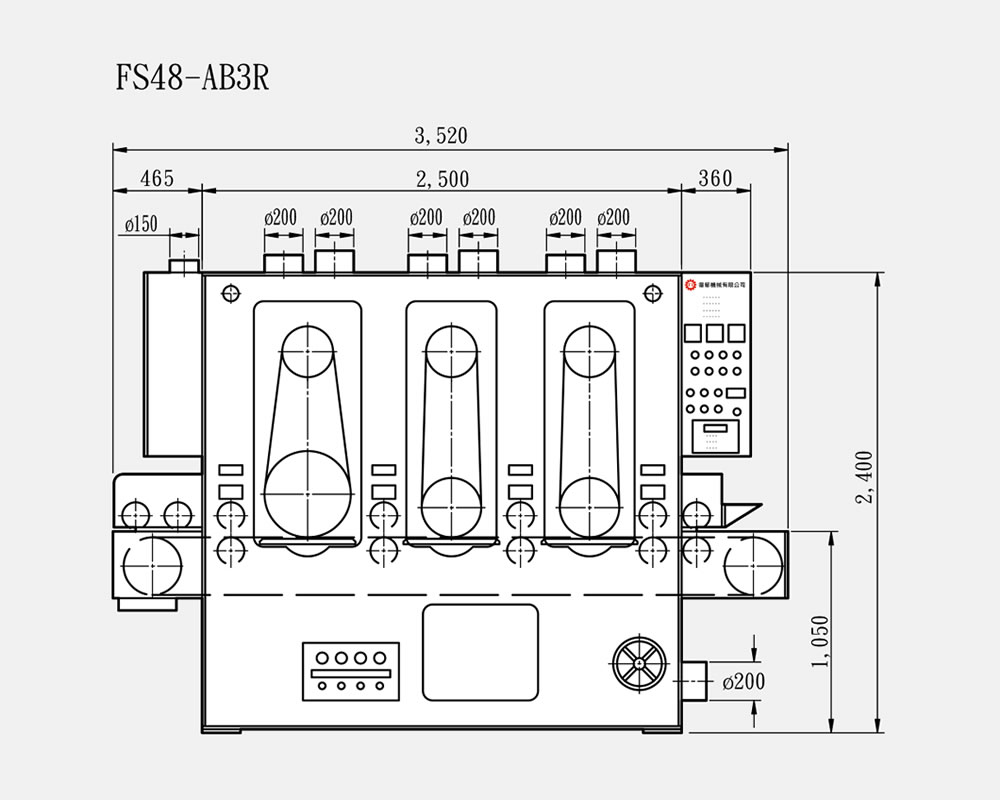

MODEL：FS48-AB3R

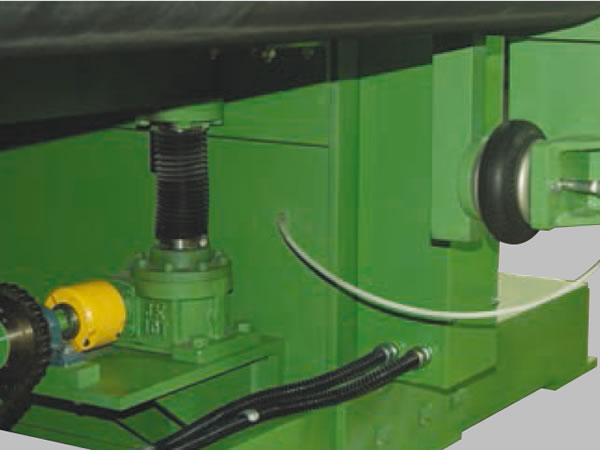

All sanding heads and bottom rollers are loaded by Germany-imported air springs. These advanced air springs greatly upgrade air loading stability.
| MODEL | FS48-AB3R |
|---|---|
| MAX. Working width | 1270mm |
| MAX. Working height | 125mm |
| Feed rate, variable | 30~90MPM |
| Abrasive belt | 1310X2615mm |
| Motor of 1st head | 75HP |
| Motor of 2nd head | 60HP |
| Motor of 3rd head | 40HP |
| Iron main driving roller | Ø310X1345(L)mmX1PC |
| Rubber main driving roller | Ø310X1345(L)mmX1PC |
| Rubber main driving roller | Ø450X1345(L)mmX1PC |
| Bottom roller | Ø111X1400(L)mmX5PCS |
| Press roller | Ø165X1345(L)mmX6PCS |
| Strained roller | Ø265X1345(L)mmX3PCS |
| Belt feeding roller | Ø300X1400(L)mmX2PCS |
| Brush roller | Ø165X1345(L)mmX2PCS |
| Feeding | 15HP |
| Lifting | 1HP |
| Panel brush | 1HP |
| Belt | 7400(L)X1320(W)mmX1PC |
| Floor require | 3520X2800mm |
| Net weight | 12000KGS |
| Packing dimensions | 3970X3060X2970mm |
